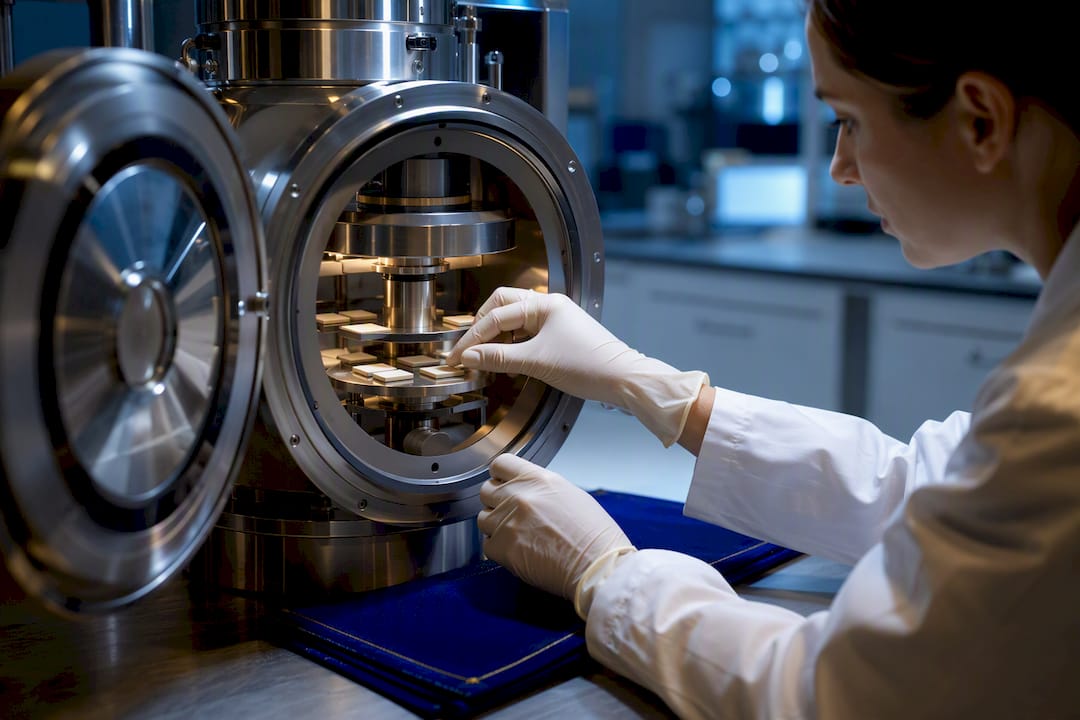

CVD reactor prepared for diamond growth

Lab Grade Tech: How Lab Grown Diamonds Are Made for UK Buyers

Modern gem-quality lab-grown diamonds come from two laboratory methods: chemical vapour deposition (CVD) and high pressure high temperature (HPHT). CVD builds a diamond atom by atom from carbon-rich plasma onto a flat seed, while HPHT squeezes molten carbon into diamond form inside a press, mimicking the pressure deep underground. Both produce genuine crystalline carbon. The difference lies entirely in growth environment, typical inclusions and the finishing work each stone needs afterwards.

TL;DR:

  • CVD tends to produce smaller, high-purity stones with fewer metallic inclusions, often requiring post-growth annealing to improve color and clarity.
  • HPHT is preferred for larger, single crystals with metallic flux inclusions, offering faster growth at higher equipment costs and often producing Type Ib diamonds.
  • Most lab-grown diamonds undergo treatments such as HPHT annealing, irradiation, or heat treatment, which must be disclosed on certification and can alter color or clarity.
  • Certification methods rely on spectral analysis, inclusion patterns, and laser inscriptions to verify growth origin and treatment history, not just visual appearance.
  • Choosing a lab-grown diamond should prioritize documented treatment and growth method details, with the paperwork more reliable than marketing claims about production technique.

Table of Contents

What lab-grown diamonds are made of: carbon, crystal structure and impurities

Strip away the marketing and a diamond is just carbon atoms locked into a rigid, repeating lattice, each one bonded to four neighbours in what chemists call sp3 bonding. That structure, not the label on the box, is what gives diamond its hardness and its fire. Lab-grown stones and mined stones share the exact same lattice. The atoms don’t know or care where they were grown.

What separates one diamond from another, lab-grown or otherwise, is what sneaks into that lattice while it’s forming. Pure carbon is colourless. Nitrogen atoms substituting for carbon push the stone towards yellow. Boron pulls it towards blue. Missing atoms, known as vacancies, create optical centres that shift colour further still, and one of the most useful of these for scientists is the nitrogen-vacancy (NV) centre, a defect pairing a nitrogen atom with an adjacent gap in the lattice.

Gemmological labs classify diamonds by exactly this impurity profile, and the terminology matters if you want to actually understand a lab report rather than just nod at it:

  • Type IIa diamonds contain no measurable nitrogen and tend to be the most colourless, a category CVD growers increasingly favour for near-colourless output.
  • Type Ib diamonds carry dispersed nitrogen atoms, common in HPHT material, giving a yellowish cast unless treated.
  • NV centre diamonds have engineered vacancy defects, prized in fancy-colour production and in quantum sensing research.

None of this happens by accident. It’s what makes a diamond a diamond, and what makes one lab-grown stone look different from the next. As for telling a real diamond, lab-grown or mined, from a simulant like cubic zirconia or moissanite, the tests are physical fact rather than guesswork: thermal conductivity, refractive index and spectroscopic response all separate genuine diamond from anything imitating it. GIA’s identification guidance sets out exactly which instruments distinguish diamond from its stand-ins, and which distinguish natural stones from laboratory ones.

Overview: the two primary modern manufacturing routes

CVD and HPHT solve the same problem, forcing carbon into a diamond lattice, using almost opposite physics. CVD works in the gas phase at low pressure, breaking apart carbon-rich gas and letting it settle onto a seed layer by layer. HPHT works in the solid and liquid phase at extreme pressure, dissolving carbon in molten metal and forcing it to crystallise on a seed as conditions cool.

Both remain in commercial use because both do something the other doesn’t do as well:

  • CVD suits growers wanting precise control over purity and colour, and it scales into flat panel reactors capable of running multiple seeds side by side.
  • HPHT suits growers wanting large, high-clarity single crystals fast, and it’s also used to treat CVD stones after growth, closing the loop between the two methods.
  • Equipment cost differs sharply. A CVD reactor is a serious lab investment, but GIA notes it typically demands lower upfront capital than an HPHT press, which explains why CVD has spread faster among newer producers.

Neither method is a garage operation. Commercial labs run dozens of reactors or presses simultaneously, each one nursing a handful of stones through a growth cycle measured in days or weeks, not minutes. That’s the part people miss when they picture a diamond just materialising: it’s closer to industrial chemistry than to magic.

Chemical vapour deposition (CVD): step-by-step technical explanation

CVD growth starts not with carbon, but with a seed. A thin slice of diamond, cut so its crystal face is exposed, sits on a substrate inside a vacuum chamber. Everything that follows depends on that seed’s surface quality, because CVD builds directly on top of it, flaw and all.

Here’s the sequence a CVD grower actually runs:

  1. Seed preparation. A polished diamond plate is laser cut into thin seed tiles and cleaned to remove surface damage that would otherwise propagate into the growing crystal.
  2. Chamber loading and evacuation. Seeds go into the reactor, which is pumped down to low pressure, far below atmospheric, before any gas is introduced.
  3. Gas introduction. A mix dominated by hydrogen with a small fraction of methane (CH4) fills the chamber, the ratio carefully tuned because too much carbon relative to hydrogen produces graphite instead of diamond.
  4. Plasma activation. Energy, delivered by microwave plasma or a heated filament, ionises the gas mixture into a plasma ball that hovers just above the seed surface.
  5. Radical generation. Atomic hydrogen and reactive carbon radicals, chiefly CH3, form within the plasma and diffuse down towards the seed.
  6. Surface deposition. Carbon atoms bond onto the seed’s exposed lattice, while atomic hydrogen does the less obvious but critical job of stripping away any non-diamond carbon (graphite or amorphous carbon) that tries to form alongside it.
  7. Layer-by-layer growth. The process repeats continuously, building the crystal upward in extremely thin layers, with growers running stop and start polishing cycles to manage stacking faults, a documented technique noted in GIA’s account of CVD production.
  8. Harvest and post-processing. Once the crystal reaches usable thickness, growth stops, the plate is removed, and cutting begins.

That role played by atomic hydrogen is the part most explanations skip, and it’s the actual reason CVD works at all rather than just coating the seed in soot. Without hydrogen selectively dissolving away non-diamond carbon faster than it dissolves diamond, the deposit would end up amorphous rather than crystalline. Research published in PNAS has gone further, observing that under certain reactor conditions involving tantalum, oxygen and hydrogen, diamond can even form through a direct phase transition from graphitic carbon structures, adding a second mechanistic pathway to the simple radical-deposition picture most textbooks describe.

Growth rates in commercial CVD reactors are modest by any everyday standard. Reaching a gem-sized rough stone commonly takes a few weeks, not hours, and that timeline is exactly why CVD producers batch multiple seeds per run rather than growing one stone at a time. Left partway through, the crystal often carries a brownish tint caused by lattice strain and stacking faults picked up during growth. Most manufacturers correct this with a post-growth HPHT anneal, essentially borrowing the second method to finish what CVD started.

Pro Tip: If you’re assessing CVD stones, ask whether the stone has been HPHT-annealed after growth. A brown-to-colourless shift after annealing is one of the clearest tells that a producer has actively managed lattice defects rather than skipped the step.

High pressure high temperature (HPHT): step-by-step technical explanation

HPHT doesn’t build a diamond so much as recreate the conditions that make one form underground, then compress that timeline from geological ages into weeks. Where CVD is a patient, gas-phase construction job, HPHT is a brute-force squeeze.

The process runs through several distinct stages:

  1. Growth cell assembly. A small seed crystal, graphite carbon source, and a metallic solvent/catalyst, typically an alloy of iron, nickel and cobalt, are packed into a capsule alongside the seed.
  2. Loading the press. That capsule goes into one of three press designs: belt presses, cubic presses, or the split-sphere (BARS) design, each built to apply enormous, evenly distributed force.
  3. Pressurisation. The press ramps up to roughly 5 to 6 gigapascals of pressure, a figure documented in Reviews in Mineralogy and Geochemistry’s chapter on diamond synthesis, comparable to the pressure found around 150 kilometres beneath the Earth’s surface.
  4. Heating. Temperature climbs to between 1,300°C and 1,600°C, hot enough to melt the metal solvent and dissolve the graphite carbon source into it.
  5. Temperature-gradient growth. A deliberate thermal gradient of roughly 20 to 50°C is maintained across the cell, hotter near the carbon source, cooler near the seed, so dissolved carbon migrates towards the cooler zone.
  6. Precipitation onto the seed. As carbon reaches the cooler region, it comes out of solution and deposits onto the seed’s crystal faces, building the diamond outward face by face.
  7. Controlled cooling and depressurisation. Once the crystal reaches target size, the press cools and releases pressure gradually to avoid fracturing the new growth.
  8. Extraction and cleaning. The capsule is broken open and the rough crystal separated from the solidified metal flux surrounding it.

That temperature gradient is doing more work than it sounds like it should. Detailed HPHT growth analysis shows that even small variations in that gradient change growth rate on a facet-by-facet basis, which is exactly why HPHT stones often display characteristic growth-sector patterns under magnification, a fingerprint natural diamonds simply don’t carry.

A commercial HPHT press runs at extremely high pressure and temperature, sustained continuously for days to weeks, to grow a single gem-quality crystal, according to figures set out in Reviews in Mineralogy and Geochemistry. That’s not a brief pulse. It’s sustained industrial conditions closer to what you’d associate with steelmaking than jewellery.

Metal flux from the solvent/catalyst frequently gets trapped inside the growing crystal, leaving tiny metallic inclusions that are often visible, sometimes even magnetic, under close inspection. That’s a defining HPHT signature and one of the fastest ways a gemmologist separates HPHT material from CVD material at a glance. Because HPHT can grow comparatively large single crystals in one continuous run, it remains the preferred route whenever a producer wants sizeable, high-clarity rough rather than a batch of smaller stones.

CVD versus HPHT: practical comparison and when each method is preferred

Choosing between the two isn’t about which method is “better”. It’s about what the grower is actually trying to produce, and the trade-offs are concrete enough to lay out plainly.

  • Growth conditions: CVD runs at low pressure with plasma activation; HPHT runs at 5 to 6 GPa with metal-flux catalysis, conditions that GIA describes as fundamentally different physical regimes despite producing the same mineral.
  • Equipment cost: CVD reactors generally demand a lower upfront investment than an HPHT press, which is why smaller producers have gravitated towards CVD in recent years.
  • Typical crystal quality: CVD tends to produce lower nitrogen content, useful for Type IIa colourless output, while HPHT more commonly yields Type Ib stones with dispersed nitrogen unless the grower actively manages the recipe.
  • Common inclusions: HPHT stones often carry metallic flux inclusions; CVD stones more commonly show stacking faults and require post-growth annealing to shed a brownish tint.
  • Batch throughput and size: CVD favours multiple smaller seeds grown flat and simultaneously; HPHT favours fewer, larger single crystals per press run.

For a jeweller assessing rough for cutting, these differences aren’t academic. A stone with visible metallic inclusions and growth-sector zoning under magnification points towards HPHT origin, while even, low-nitrogen material with subtle strain patterns points towards CVD. Grading labs weigh this when writing up a certificate, and it shapes cutting decisions too, since inclusion location and type affect how a cutter plans facets to maximise both size and brilliance. None of it affects the stone’s fundamental value as diamond. Chemically and optically, the two methods produce material with identical physical properties, and any resale distinction buyers encounter comes from market dynamics rather than one method producing an inferior stone. Our gemologist’s guide comparing HPHT and CVD walks through what this means for someone actually shopping rather than studying reactors.

Post-growth treatments, colouring and engineered defects

Very few lab-grown diamonds leave the growth chamber ready to sell. Most go through at least one further stage designed to correct colour, improve clarity, or in some cases, deliberately introduce a colour that never occurs by accident.

The main treatments in use are:

  • HPHT annealing. Even CVD-grown stones frequently pass through an HPHT press afterwards, not to grow further but to relieve lattice strain and shift brownish colouring towards colourless.
  • Irradiation. Bombarding a stone with high-energy particles can create vacancy defects that shift colour, commonly used to produce fancy colours like blue or green.
  • Heat treatment. Following irradiation, controlled heating can move vacancies into stable configurations, locking in a target colour rather than leaving it prone to fading.
  • Engineered NV centres. Some producers now grow diamonds specifically to contain nitrogen-vacancy centres for scientific or fancy-colour purposes, a use distinct from ordinary consumer treatments and increasingly relevant to quantum sensing research alongside gem production.

Every one of these treatments is meant to be disclosed. A legitimate lab report will state whether a stone has been treated and by what method, and reputable retailers pass that information straight through rather than burying it.

Pro Tip: Always ask specifically whether a coloured lab-grown diamond has been irradiated or heat treated. It’s a completely normal and disclosed part of production, but you should hear it stated plainly, not left off the paperwork.

How gem labs test and certify lab-grown diamonds

Certification is where all the chemistry above turns into something a buyer can actually check. Major gem labs don’t take a producer’s word for growth method. They test for it, using instruments that read the stone’s internal fingerprint rather than its surface appearance.

The core toolkit includes:

  • FTIR spectroscopy, which reads infrared absorption patterns to identify nitrogen content and type classification (Ia, Ib, IIa) instantly.
  • UV-Vis spectroscopy, used to detect specific absorption features linked to treatment history and colour origin.
  • Photoluminescence spectroscopy, sensitive enough to pick up NV centres and other trace defects invisible to standard grading tools.
  • Growth-sector and inclusion analysis, where a gemmologist examines internal patterns under magnification, metallic flux for HPHT, graining and stacking-fault patterns for CVD.

A properly issued certificate from a major laboratory will state the growth method outright, using language such as “laboratory-grown” rather than leaving it ambiguous, a standard GIA applies consistently across its reports. Many stones also carry a laser inscription on the girdle, invisible to the naked eye but readable under magnification, linking the physical stone permanently to its certificate number. That inscription is arguably the single most useful trust signal available to an ordinary buyer, because it means the paperwork can’t quietly drift away from the stone. Our guide to verifying a lab-grown diamond’s authenticity sets out exactly how to check that inscription yourself before you buy.

An editorial take on lab-grown diamond production

Most explanations of lab-grown diamonds either drown you in chemistry or skip straight to marketing claims about sustainability and price. Neither serves the reader who actually wants to understand what’s happening inside that reactor or press.

The judgement worth taking away is this: growth method matters far less than most buying guides suggest, and treatment disclosure matters far more. A well-annealed CVD stone and a clean HPHT stone are equally genuine diamond, full stop. What actually varies, and what conventional advice underplays, is how consistently a seller documents treatment history and growth method on the certificate itself.

Prioritise the paperwork over the pitch. Ask for the laser inscription, check it against the certificate, and treat any hesitation about disclosing treatment as the real warning sign, not the growth method itself.

— James
